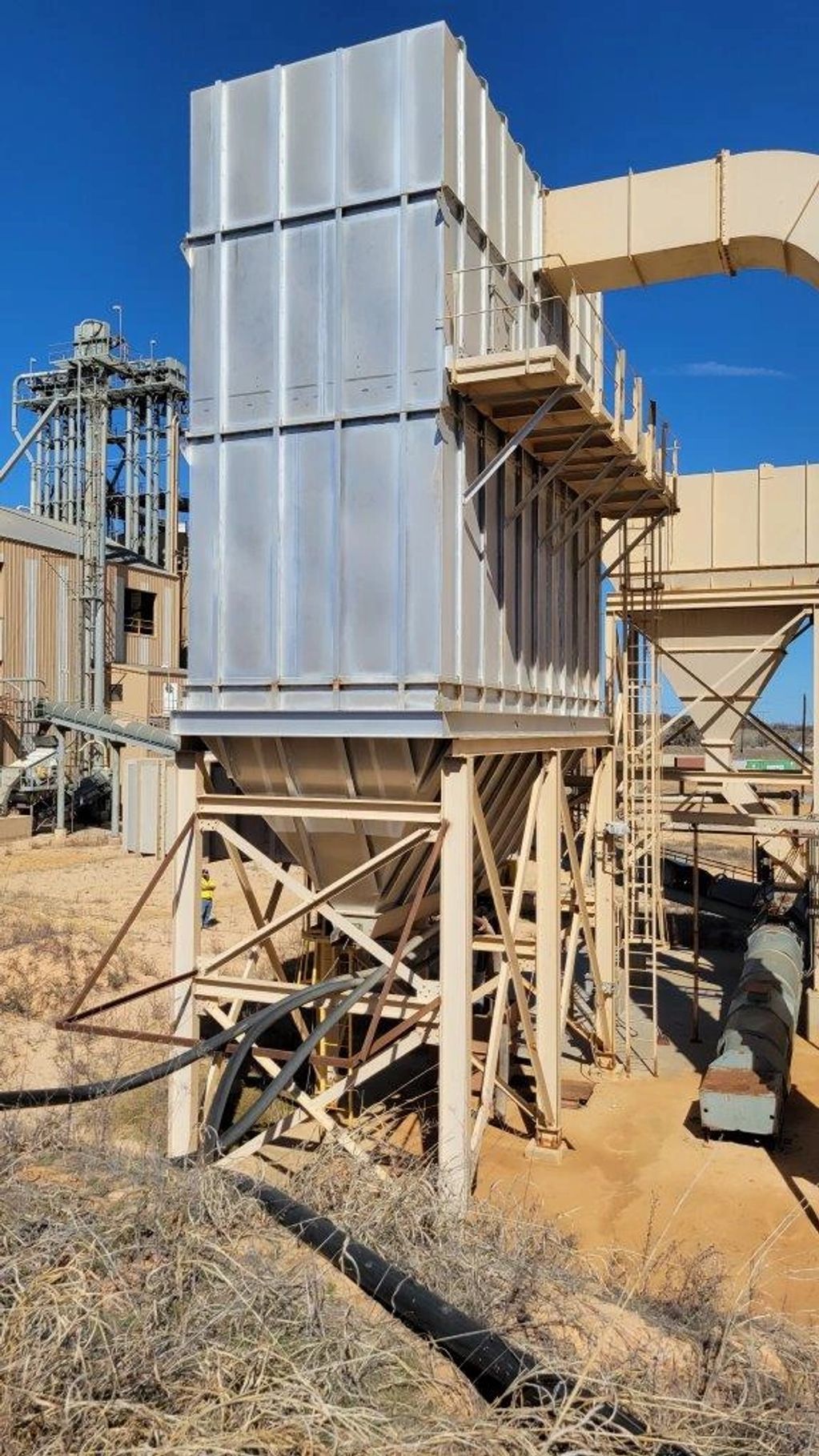

600-Bag Stainless Steel Pulse-Jet Baghouse
Stainless Steel Walk-In Clean Air Service Plenum for Clean Side Filter Access.

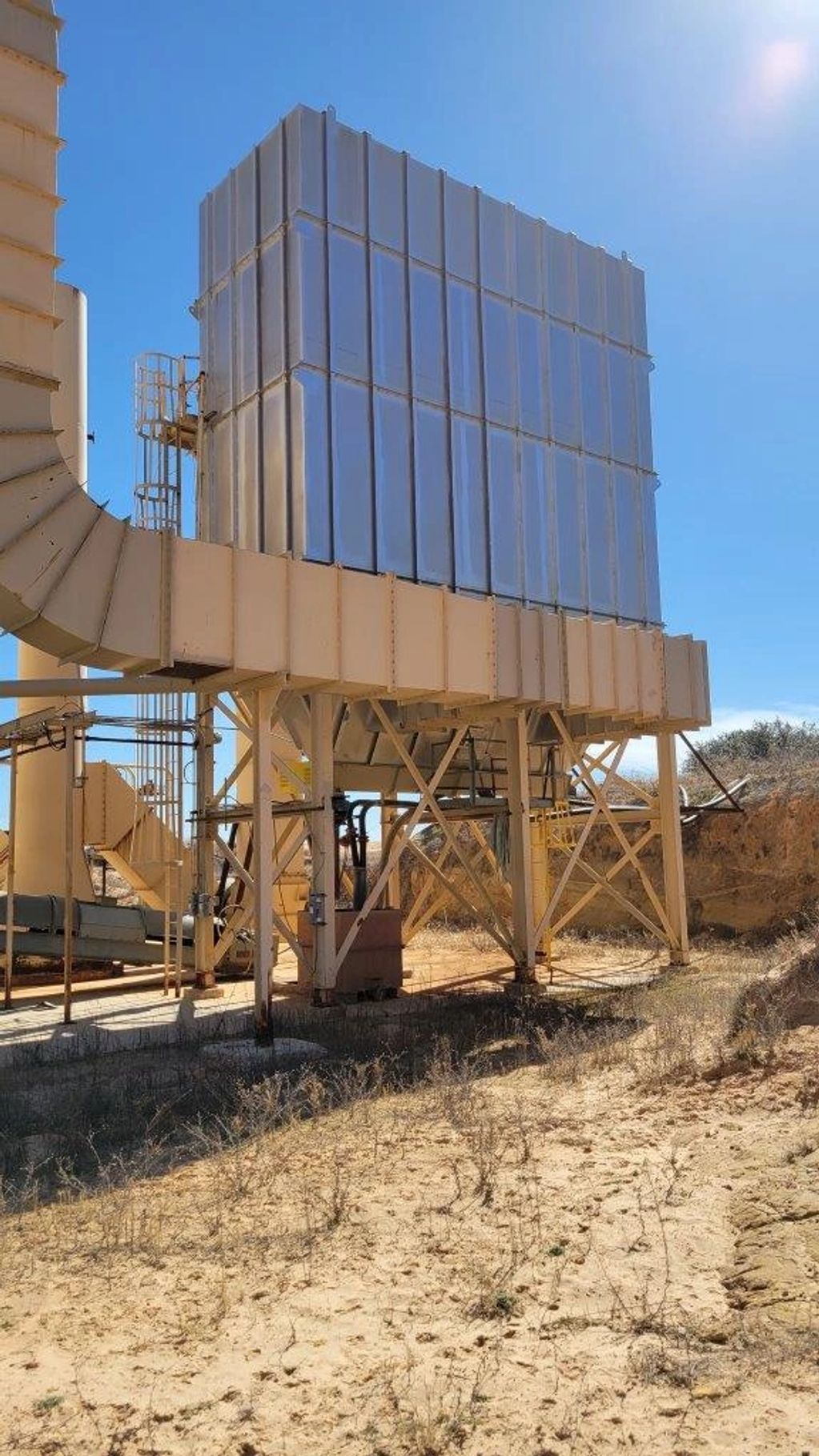

Inlet Ductwork manifold with transitions to hopper level inlets
Service Platform with Handrail for accessing walk-in clean air plenum as well as servicing the exterior ultra-heavy duty pulse valves
Connecting Ductwork from the Clean Air Plenum to blower inlet, Twin City 200 HP Direct Drive Blower, transition to exhaust stack and ground mounted exhaust stack
Dual Access Doors to Clean Air Plenum, Steel Support Structure, Caged Access Ladder
Inside Stainless Steel Clean Air Plenum
Inside Hopper Section looking up at the Dirty Air Plenum and showing the Abrasion Resistant Deflection Baffles from one of the two inlets
